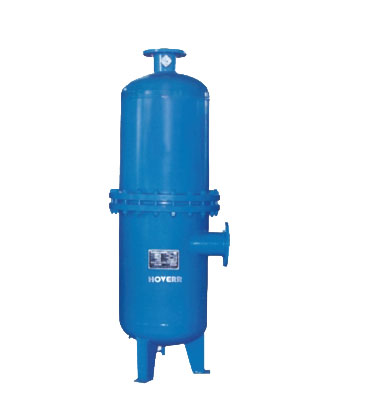

HYG efficient degreasing
Interview
The series sets cyclone, coarse filter, fine filter three purification as a whole, through the cyclone to remove larger particles and liquid droplets, coarse filter and fine filter to reduce the load, and then through coarse filter and fine filter combined effects can effectively remove the compressed air in the oil, water, dust, the filtration accuracy of 0.1um, residual oil is less than 0.1ppm, the gas purification and reliable quality assurance.

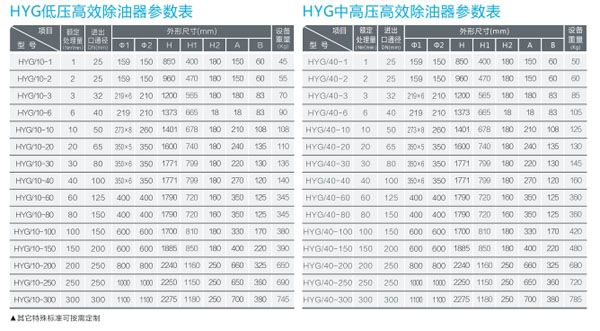

Working conditions and technical specifications
Working Pressure Gas temperature Pressure drop Oil outlet Trail Dust Filter 0.6-4.0Mpa ≤50℃ ≤5% <0.1mg/m3 ≤0.1um
