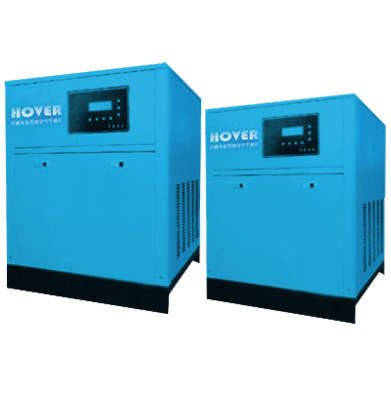

HOVER Air heat recovery unit
Interview
Good Way Air heat recovery unit, is a multi-screw compressor heater heat exchange device, screw air compressor to run continuously for a long process, converts electrical energy into mechanical energy, thermal energy from the air compressor lubricants and these compressed air discharge.

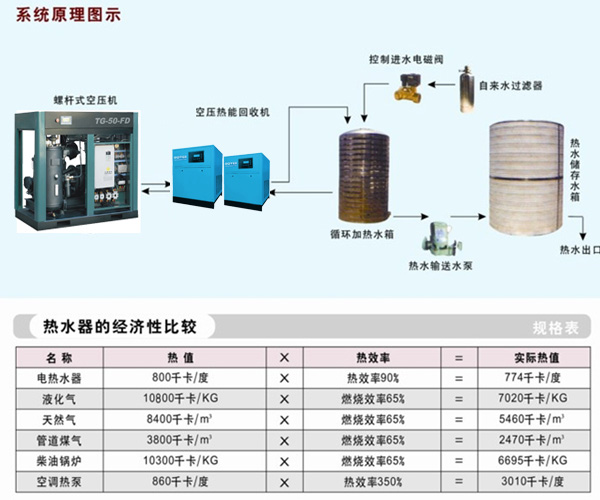

Air heat recovery machine works
Good Way Air heat recovery unit, is a multi-screw compressor heater heat exchange device, screw air compressor to run continuously for a long process, converts electrical energy into mechanical energy, thermal energy from the air compressor lubricants and these compressed air discharge. This part of the high temperature oil / air heat equivalent compressor input power of 3/4, its temperature is usually at 80 ℃ (winter) to 100 ℃ (summer and autumn), which are endless heat discharged into the atmosphere in the exhaust gas, ie compressor cooling system to complete the machine running temperature requirements. Good Way compressor heat recovery unit is connected to the front end of the air compressor cooling system, the use of cold water circulation line, and the screw compressor of the heat generated in the heat recovery unit for heat exchange within the heat recovery using the generated heat water, thus eliminating the need for enterprise manufacturing hot water needed in energy costs.
