Air compressor air tank, you don’t know!

"Technical support" air compressor air tank, you don’t know!

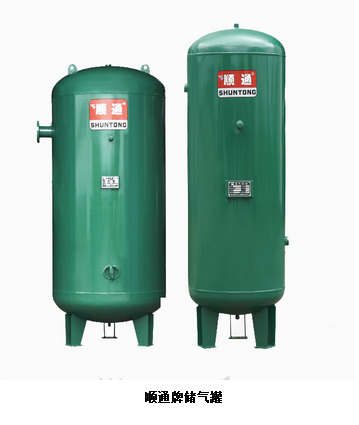

The role of air compressor propane tanks

1, storage air, meet the needs of gas equipment suddenly instantaneous gas increase;

2, storage air, eliminate the airflow pulsation in the pipeline.

3, preliminary cooling air, part of the liquid water precipitation. So the gasholder drainage regularly;

4, can guarantee air compressor shut down automatically, under the set pressure air tank a dozen full gas compressor will automatically stop, don’t let the air compressor has been running to waste electricity.

The effect of extension of gasholder

Theoretically gasholder is bigger, the better, can reduce the number of air compressor frequently. Star triangle start is a start, power frequency motor starting current is rated current of about seven times, frequent start the damage to the electrical part of the air compressor is relatively large, reduce the service life of electrical parts, at the same time, the impact on the grid is bigger, affect the normal use of other electrical equipment. Frequency conversion air compressor soft start, the starting current is rated current of 2 times the left and right sides, effect is not very big.

Problem: screw air compressor air tank can not?

Enthusiastic netizens a: air compressor export of propane tanks can not only ensure the stable gas, cushion and other pressures, at the same time, still has an important role in the general users won’t notice, that is, to prevent air compressor during downtime, compressed air pipeline because of some reason to return to the liquid, flowing into the air compressor, because of the damage. If you remove the gas tank, the pipeline design, the inverted u-shaped bending design will be taken to have the same effect. Don’t know whether to speak to, please advise.

Enthusiastic netizens 2: the role of the gasholder is to maintain the compressed air system pipe network pressure not to drastic fluctuations. Due to the compressed air system at the end of the gas generally can’t be any time is stable, so to take advantage of air tank to balance the smooth and reduce the air compressor system pressure loading and unloading. Another role is to again after drying of the compressed air for cooling, in order to reduce air moisture content.

For individual compressed air system, such as air compressor capacity is large (such as centrifugal air compressor), the volume of system pipe network is bigger (large pipe diameter and length) and gas more smoothly, also can not equipped with propane tanks. But generally the compressed air system needs to be equipped with propane tanks.

Enthusiastic netizens 3: air compressor is not stored compressed air inside, once produce must be used in the compressed air, this way of working is not ideal, with storage tanks, can first will play into the storage tanks of compressed air to a certain pressure, and then use air pressure to a certain extent, the compressor to start again, so that both from the perspective of energy utilization and compressed air quality is better. So there is no storage tanks are not enough.

Enthusiastic netizen 4: for small amount of compressed air needed for use don’t frequent equipment, air compressor can don’t propane tanks. But considering the stability of air compressor performance, the constant pressure of compressed air, and quality, the best match propane tanks.

1, the air compressor motor

Because of the air compressor movement range is relatively large, so in the work frequently open and stop the pressure vessel, this increased the wear of the valve, the other side also makes the oil gas path is not stable, it will cause the instability of the machine, but if configured with propane tanks, this kind of situation will be relatively reduced.

2, energy saving effect

Air compressor start and stop frequently, so the motor consumes electricity flow is very big, so put in use is the state of the air compressor is empty, this state if stay very long, will waste a lot of traffic. But if it is equipped with air tank air system, so the stability of the air compressor will stop down, can ensure that the work is very stable, reduce unnecessary idle waste of energy.

3, provide stable air supply

Why air compressor binding propane tanks? Air compressor system if a propane tanks, air compressor output has a buffer air, air supply can better keep at a set value, can get a constant pressure gas system, it is necessary for the use of modern factory.

4, good air quality

Air compressor compressed air, first of all, to storage tanks, the air will stay here some time, can precipitate the impurities in the air moisture foreign body, such as the temperature of the compressed air have been reduced, is that there is no freeze drying machine, also can send more high quality air.

The role of saving is actually a reservoir, the air compressor is a gas source, while the gasholder is a pool of water. Propane tanks can according to set the pressure uniform in the range of a certain pressure, buffer pressure fluctuations, reduce the start times of air compressor, gasholder also can play precipitation impurities in the air moisture and other foreign body function.
