Modular low dew point adsorption dryer
Interview
Works

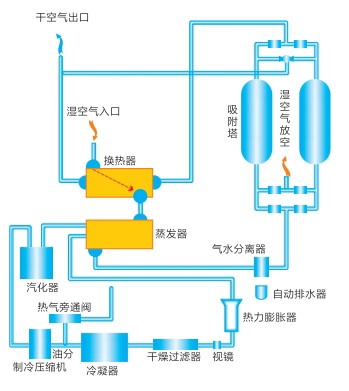

The hot and humid air compressor, first heat exchanger and the temperature of the dried air for heat exchange. Lowering the temperature of the evaporator and then is further cooled to about 2 ℃, the pressure dew point in a large water has become a part of the gaseous liquid water is discharged, then a low moisture content is further compressed air into the adsorption dehumidification drying cylinder. get lower dew point of the finished product gas, the final Kelvin temperature drying compressed air into the heat exchanger, cooled hot and humid air, while its temperature is also increased. prevent condensation outer transporting conduit, and heating a small portion of the compressed air used for regeneration of the adsorbent, improve the regeneration efficiency and reduce energy consumption.
